SJ-H1833SA.H2232SA(18". 22")

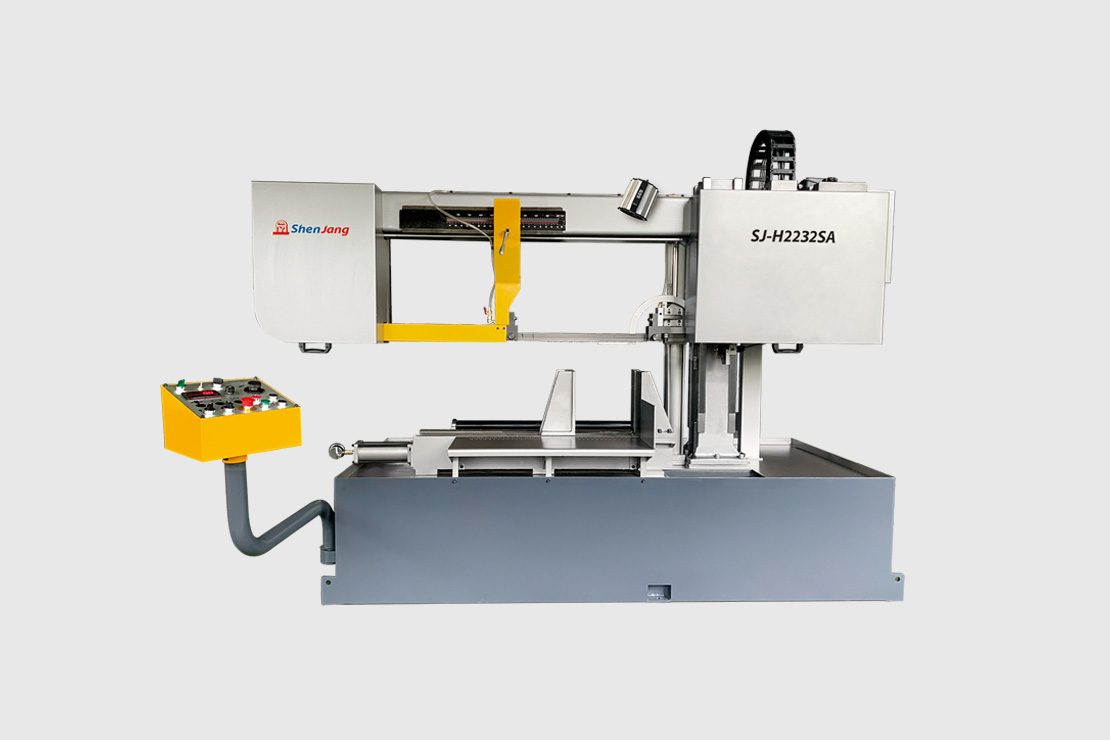

SJ-H1833SA(18") / SJ-H2232SA(22")
Semi-automatic Bandsaw / Single Column
Designed for accurate 90 degrees cutting and auto lifting frame.
*Products shown may include optional accessories.
1.Semi-automatic machine
2.Auto lifting frame
3.Single column horizontal bandsaw
4.Multi-strokes hydraulic vice
5.Manual blade tension w/ tension gauge
6.Saw bow height auto set by descending slide bar
7.Variable blade speed by frequency inverter
8.Variable vise pressure
9.Power Driven Chip Brush
10.Manual Lubrication System
11.Hydraulic blade tension (Opt.)
| Model | SJ-H1833SA |
 18" (460mm) |
|
| Capacity at 90 |  18" (460mm) |
 18"x 31 1/2" (460x800mm) |
|
| Blade size | 1.61"x0.051"x228" (41mmx1.3mmx5800mm) |
| Motor | 7.5HP(5.63KW) |
| Speed range | 50~297 FPM (15~90 MPM) |
| Packing size | 123" x 44 1/2" x 81 1/2" (313cmx113cmx207cm) |
| Net weight | 1900Kgs (4180ibs) |
| Gross weight | 2100Kgs (4620ibs) |
| Model | SJ-H2232SA |
| 22" (560mm) |
|
| Capacity at 90 | 22" (560mm) |
| 22"x 31 1/2" (560x800mm) |
|
| Blade size | 1.61"x0.051"x240" (41mmx1.3mmx6100mm) |
| Motor | 7.5HP(5.63KW) |
| Speed range | 50~297 FPM (15~90 MPM) |
| Packing size | 125" x 44 1/2" x 89" (318cmx113cmx226cm) |
| Net weight | 1950Kgs (4290ibs) |
| Gross weight | 2150Kgs (4730ibs) |
