Automatic Bandsaw / Hydraulic Vice Feed / Angle Cutting

Auto-cutting, auto feeding, auto lifting frame and auto-clamping double vice. Swiveling saw frame manually.

1.Heavy duty automatic machine

2.Hydraulic vice feed for continuous automatic cutting

3.Swivel head for easy 45 degrees angle cutting without moving material

4.Auto-cutting, auto feeding, auto lifting frame and auto-clamping double vice

5.Work-height control

6.Frequency Inverter

7.Hydraulic chip conveyor

8.Automatic blade breakage power off system

9.Out of stock sensor

10.Counting device

11.Flushing hose

12.Length indexing digital readout

13.Work light fitted standard

14.Efficient coolant system with built-in tank and pump

15.Instant blade tension

16.Large tungsten carbide and roller blade guide

17.Adjustable rod for the same cutting length

18.Rugged fabricated steel construction, powerful drive and positive vice

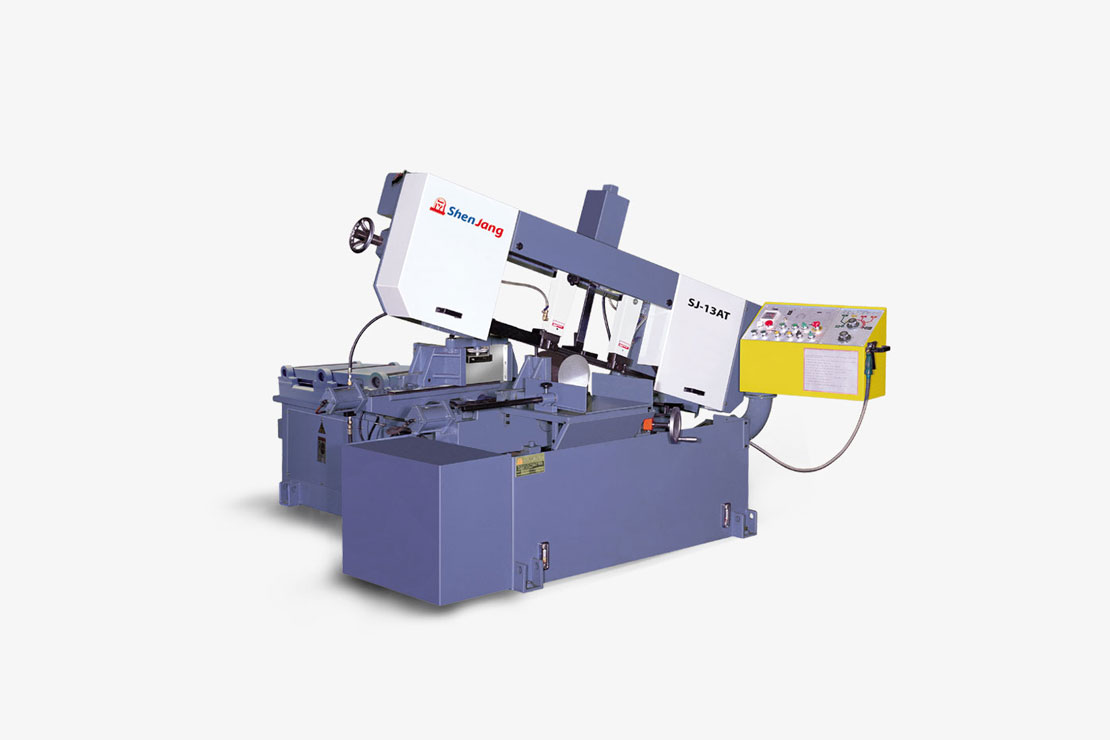

Model  SJ-13AT
   13" (330mm)
Capacity at 90  10" (260mm)
   10"x 17 3/4" (260x450mm)
Capacity at 45  13" (330mm)
 10" (260mm)
 10"x 13" (260x330mm)
Blade size  1 1/4"x163 3/8" (34mmx1.1mmx4150mm)
Vice control  Hydraulic
Speed range   50~297 FPM (15~90 MPM)
Motor hydraulic  1HP(0.75KW)
 Motor blade  3HP(2.25KW)
Hydraulic tank  44L(11GAI)
Hydraulic tank output  28Kg/cm2
Coolant capacity  45L(11.2GAI)
Shuttle stroke  one stroke 500mm(0~4500mm)
 (0"~177") (0~9 Times)
Table height  690mm(27")
Packing size  102" x 90" x 68" (260cmx228cmx173cm)
Net weight  1620Kgs (3660ibs)
Gross weight  1820Kgs (4044ibs)
