Semi-automatic Bandsaw / Angle Cutting / Bi-Direction Miter-cutting

Designed for 45/60 degrees cutting and precision double miter cut right and left. Swiveling saw frame manually. Auto lifting frame. Hydraulic cylinder clamping.

1.Semi-automatic machine

2.Swivel head for easy angle cutting without moving material

3.Precision double miter cut to 45 and 60 degrees right and left

4.Auto lifting frame

5.Large white iron mitre scale - easy to read

6.Frequency inverter adjustable blade speed control – easy to choose

7.Stable construction due to double points – increase efficiency and accuracy

8.Full stroke cylinders for clamping material – safely and quickly

9.Efficient coolant system with built-in tank and pump

10.High efficient, low energy motor

11.Speed change selection

12.Instant blade tension

13.Large tungsten carbide and roller blade guide

14.Adjustable rod for the same cutting length

15.Low voltage control with overload protecting

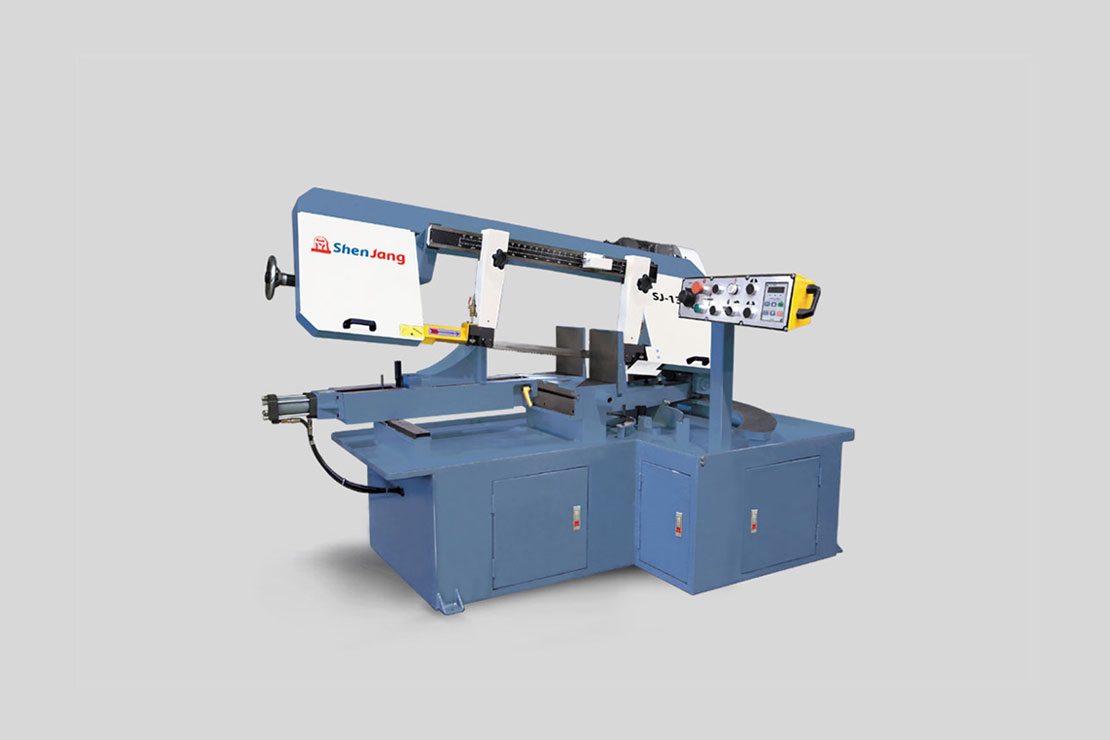

Model  SJ-13SAT
   13" (330mm)
Capacity at 90  13" (330mm)
   12"x 23 1/2" (300x600mm)
   13" (330mm)
Capacity at 45  13" (330mm)
   8"x 16" (200x400mm)
Capacity at 60  11" (280mm)
 11" (280mm)
 7"x 12" (180x300mm)
Blade size  1 1/4"x172" (34mmx1.1mmx4365mm)
Motor  3HP(2.25KW)
Speed range   50~297 FPM (15~90 MPM)
Packing size  90" x 60" x 60" (228cmx154cmx154cm)
Net weight  830Kgs (1826ibs)
Gross weight  950Kgs (2090ibs)
