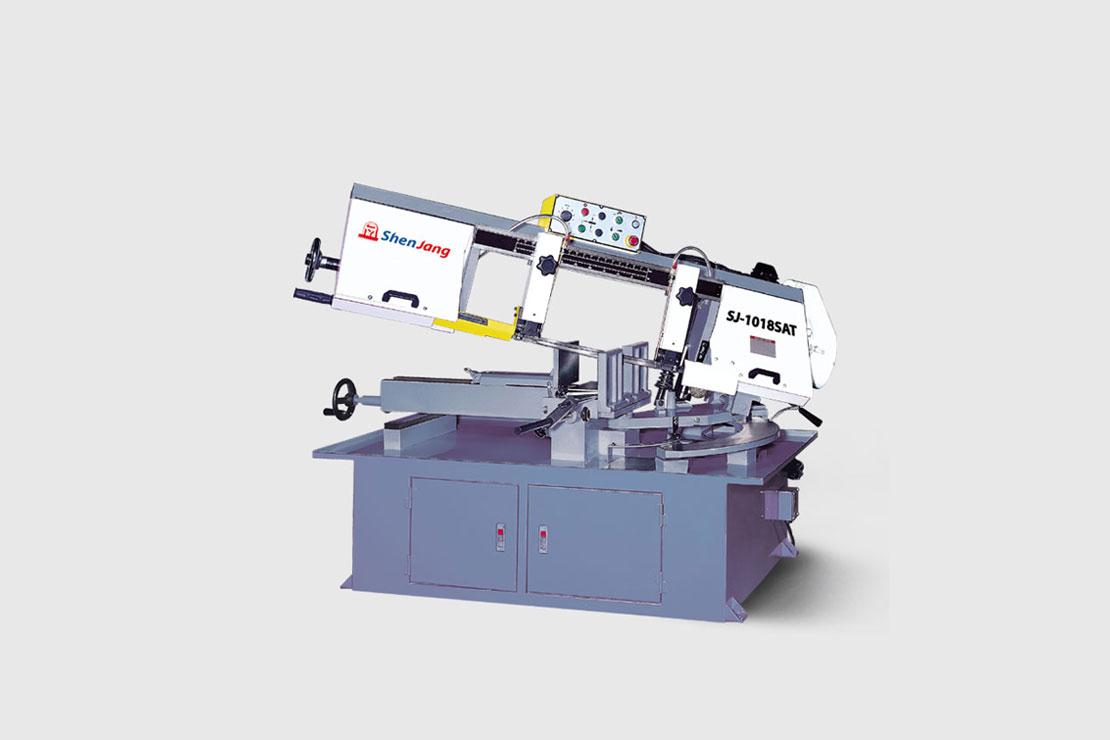

SJ-1018SAT(10")

SJ-1018SAT(10")

Semi-automatic Bandsaw / Angle Cutting / Bi-Direction Miter-cutting

Designed for 45/60 degrees cutting and precision double miter cut right and left. Auto lifting frame and swiveling saw frame manually.

1.Semi-automatic machine

2.Swivel head for easy angle cutting without moving material

3.Precision double miter cut to 45 and 60 degrees right and left

4.Auto lifting frame

5.Large white iron mitre scale - easy to read

6.Efficient coolant system with built-in tank and pump

7.High efficient, low energy motor

8.Speed change selection

9.Instant blade tension

10.Large tungsten carbide and roller blade guide

11.Adjustable rod for the same cutting length

12.Low voltage control with overload protecting

Model  SJ-1018SAT
   10" (260mm)
Capacity at 90  10" (260mm)
   10"x 17" (260x430mm)
   10" (260mm)
Capacity at 45  10" (260mm)
   10"x 12" (260x300mm)
Capacity at 60  6" (155mm)
 5 1/2" (140mm)
 6"x 5" (155x125mm)
Blade size  1 "x144" (27mmx0.9mmx3660mm)
Motor  2HP(1.5KW)
Speed range   50,125, 200, 275 FPM (15,38,61,84 MPM)
Packing size  85" x 40" x 44" (215cmx101 1/2cmx113cm)
Net weight  500Kgs (1100ibs)
Gross weight  550Kgs (1210ibs)
