Manual Bandsaw / Angle Cutting / Bi-Direction Miter-cutting

Designed for 45/60 degrees cutting and precision double miter cut right and left. Raising and swiveling saw frame manually.

*Products shown may include optional accessories.

1.Manual machine

2.Swivel head for easy angle cutting without moving material

3.Precision double miter cut to 45 and 60 degrees right and left

4.Large white iron mitre scale - easy to read

5.Efficient coolant system with built-in tank and pump

6.High efficient, low energy motor

7.Speed change selection

8.Instant blade tension

9.Large tungsten carbide and roller blade guide

10.Adjustable rod for the same cutting length

11.Low voltage control with overload protecting

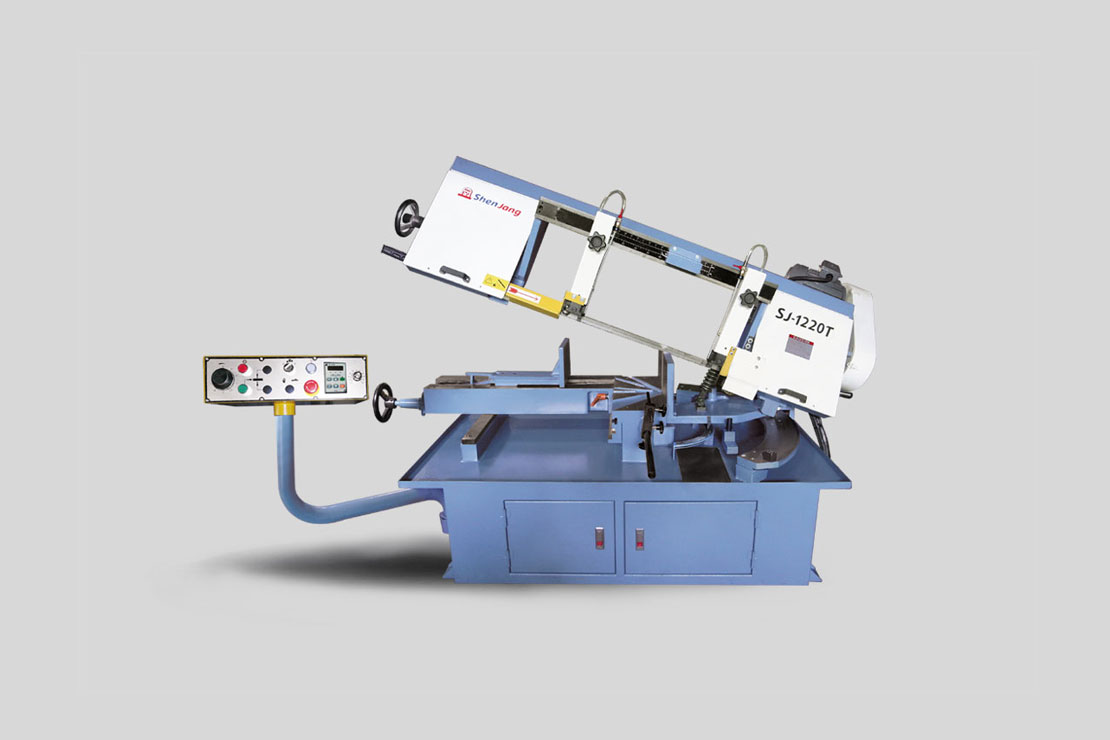

Model  SJ-1220T
   12" (305mm)
Capacity at 90  12" (305mm)
   12"x 20" (305x500mm)
Capacity at 45  12" (305mm)
   12" (305mm)
Capacity at 60  8" (200mm)
 7 1/4" (185mm)
 6 1/4"x 8" (160x200mm)
Blade size  1 "x150 3/8" (27mmx0.9mmx3820mm)
Motor  2HP(1.5KW)
Speed range   50,125, 200, 275 FPM (15,38,61,84 MPM)
Packing size  88" x 40" x 44" (224cmx101 1/2cmx113cm)
Net weight  540Kgs (1188ibs)
Gross weight  590Kgs (1298ibs)
